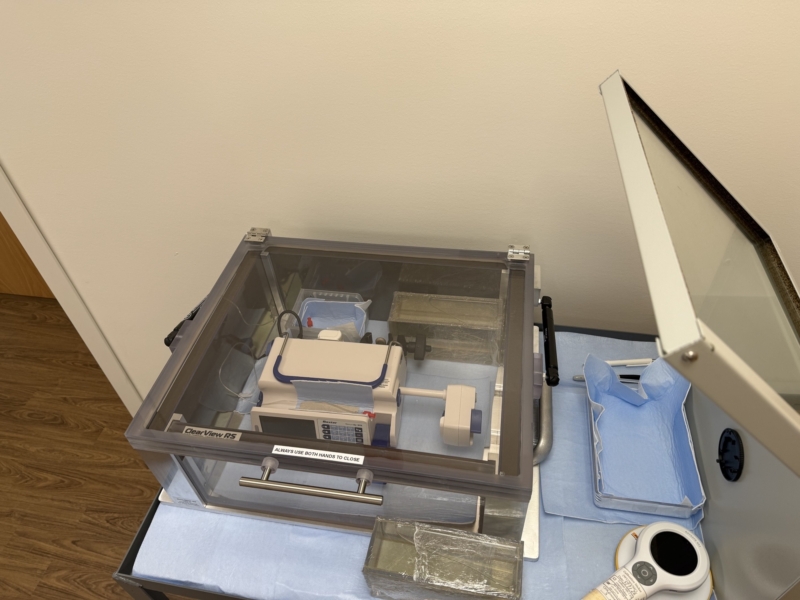

Lift shield for cable and tubing access passthrough.

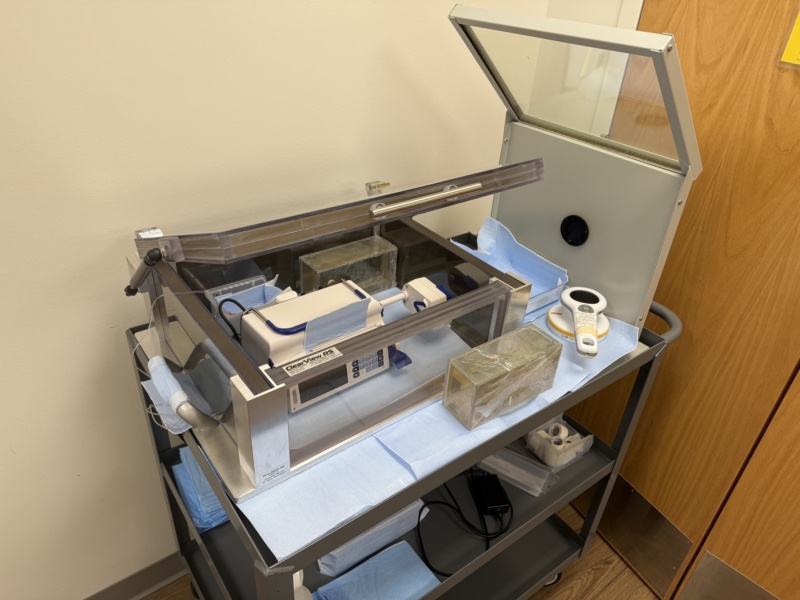

Clearview Infusion Pump Shield on Optional Stainless Steel Cart
ClearView Radiation Shielding – Infusion Pump Shield
ClearView Radiation Shielding is being used in diagnostic imaging and therapies in over 500 hospitals with various products for Theranostics (in use or under development) as an alternative to lead.
| Therapeutic | Diagnostic |
|---|---|
| Iodine (I) -131 (mIBG, Iopofosine, Azedra, etc.) | Gallium (Ga) – 68 (PSMA, Dotatate, Illicix) |
| Lutetuim (Lu)-177 (Pluvicto, Lutathera, etc.) | Fluorine (F) -18 (FDG, PYLARIFY, etc.) |
| Copper (Cu) -67 (SECuRE, etc.) | Copper (Cu) -64 (SAR-bisPSMA) |
| Actinium (Ac) -225 (Lintuzumab, PSMA, etc.) | Technetium (Tc)-99m (Neurolite, Draximage, etc.) |
| Lead (Pb) -212 (DOTAMTATE, VMT01) | Indium (In) -111 |
| Yttrium (Y) -90 (SIR-Spheres, TheraSphereTM , etc.) | Iodine (I) -123 |
| Radium (Ra) -223 | |
| Samarium (Sm) -153 |
ClearView Radiation Shielding syringe or injection pump shield is designed to reduce exposure to the nuclear medicine technologists. The ClearView Infusion Pump Shield fits most infusion pumps such as Graseby, Medfusion, Moog Curlin, etc. It is being used in Theranostic centers for infusion of radiopharmaceuticals such as Lutathera, Azedra, AdreView, Megatope, HICON™. The ClearView Infusion Pump Shield works for infusion treatments from Ac-225 PSMA, I-123 and I-131 mIBG therapies, Lutathera (Lu-177) therapies for Neuroendocrine Tumor Treatment, FDA approved Pluvicto TM (lutetium Lu 177 vipivotide tetraxetan or 177Lu-PSMA-617) for the treatment of prostate-specific membrane antigen–positive metastatic castration-resistant prostate cancer (PSMA-positive mCRPC).
The shield has an opening on the base plate for the infusion line going to the patient and the pump power cord. The see-through ability of the pump shield allows the infusion process to be viewed either by a positioned camera or at a distance. Being a single lightweight and compact product, the ClearView pump shield eliminates the use of lead bricks and provides a sealed environment for dose infusion.
Shielding Data
- 1’’ thick ClearView Radiation Shielding filled in .25″ acrylic housings
- Greater than 80% from PET isotopes such as Cu64, F18 etc.
- Greater than 99% attenuation of I123, I125, Sm153, Tc99m, Gd153, Th201 gammas.
- Greater than 97% attenuation of Lu177
- 0.3’’ Pb. Eq.
- Effectively blocks Beta emissions
Specifications
- Fits Medfusion, Graseby, Moog Pumps, etc.
- Weight – 100 lbs.
- Footprint – 26’’wide x 13.75’’ deep x 9.2″ high (closed)
